Industrial pipeline systems play a vital role in transporting water, wastewater, chemicals, and other fluids across various industries. To ensure safe and efficient flow control, the selection of the right valve is extremely important. Among the many types of valves used in pipeline systems, the resilient gate valve is widely known for its durability, leak-proof sealing, and long operational life.

Resilient gate valves are commonly used in municipal water supply systems, irrigation networks, wastewater treatment plants, and industrial fluid control systems. Their design includes a rubber-coated wedge that provides a tight seal when the valve is closed. This feature makes them highly reliable for controlling and isolating fluid flow in pipelines.

Choosing the correct resilient gate valve is essential for maintaining system efficiency, preventing leakage, and ensuring long-term performance. In this article, we will explore how to select the best resilient gate valve for industrial pipelines, along with its working principle, key components, types, advantages, and applications.

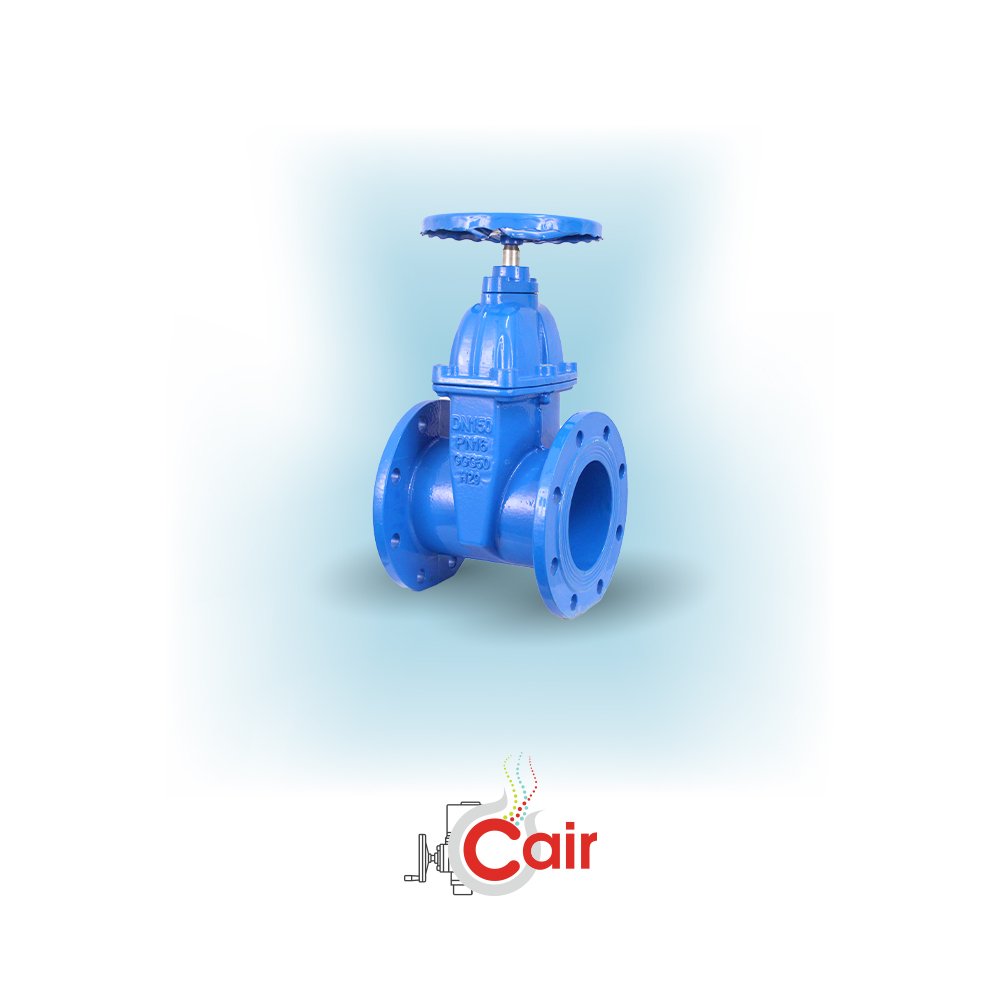

What is a Resilient Gate Valve?

A resilient gate valve is a type of shut-off valve used to control the flow of fluids in pipeline systems. The main feature that differentiates this valve from traditional gate valves is the resilient or rubber-coated wedge used inside the valve body.

When the valve closes, the rubber-coated wedge presses tightly against the valve seat, creating a leak-proof seal. This soft sealing mechanism allows the valve to maintain reliable performance even when small particles or debris are present in the fluid.

Resilient gate valves are primarily used in water distribution systems where dependable isolation and smooth flow control are required.

Key Features of Resilient Gate Valves

• Rubber coated wedge for tight sealing

• Corrosion-resistant body materials

• Smooth internal flow path

• Minimal pressure loss

• Long service life

These valves are typically manufactured using materials such as cast iron, ductile iron, and stainless steel, with protective epoxy coatings to improve durability and corrosion resistance.

Working Principle of a Resilient Gate Valve

The working principle of a resilient gate valve is simple yet highly effective. It operates by moving a rubber-coated wedge vertically inside the valve body to control the flow of fluid.

Opening the Valve

When the handwheel or actuator is rotated:

• The valve stem moves upward

• The wedge lifts away from the valve seat

• The pipeline opening becomes clear

• Fluid flows freely through the valve

Because the valve opens completely, it allows smooth fluid movement with minimal resistance.

Closing the Valve

When the handwheel rotates in the opposite direction:

• The valve stem moves downward

• The rubber-coated wedge presses against the valve seat

• The soft sealing surface creates a tight closure

• Flow through the pipeline stops completely

This sealing mechanism ensures reliable shut-off and prevents leakage.

Key Components of a Resilient Gate Valve

A resilient gate valve consists of several components that work together to regulate fluid flow effectively.

Valve Body

The valve body is the main structure that houses all internal parts. It is commonly manufactured from cast iron or ductile iron to provide strength and durability.

Wedge (Gate)

The wedge is the moving element responsible for opening and closing the valve. In resilient gate valves, the wedge is coated with rubber or elastomer material to provide a tight seal.

Stem

The stem connects the handwheel or actuator to the wedge and transfers motion to open or close the valve.

Bonnet

The bonnet covers the internal parts and protects the valve mechanism. It is securely attached to the valve body.

Handwheel or Actuator

The handwheel is used for manual operation, while electric actuators are used for automated control systems.

Important Factors to Consider When Choosing a Resilient Gate Valve

Selecting the right resilient gate valve requires careful consideration of several technical factors.

Pipeline Size

The valve must match the diameter of the pipeline to ensure proper installation and efficient flow control.

Typical valve sizes range from 50 mm to 1200 mm, with custom sizes available for special applications.

Pressure Rating

Pressure rating determines the maximum pressure the valve can safely handle.

Common pressure ratings include:

• PN10

• PN16

• PN25

Selecting the correct pressure rating ensures safe operation and prevents damage to the pipeline system.

Material of Construction

Material selection affects durability, corrosion resistance, and compatibility with the fluid.

Common materials include:

• Cast Iron (CI)

• Ductile Iron (DI)

• Stainless Steel (SS)

Epoxy coatings are often applied to protect the valve from corrosion and environmental damage.

Temperature Range

The operating temperature of the pipeline system should be considered when selecting a valve.

Typical temperature range:

Up to 80°C for water systems, depending on the materials used.

Type of Operation

Resilient gate valves are available with different operating mechanisms.

Manual Operation

Manual valves use a handwheel to control the valve position. They are commonly used in smaller systems and applications where automation is not required.

Motorized Operation

Motorized resilient gate valves use electric actuators for automated control. These valves are suitable for large industrial systems where remote operation is necessary.

Types of Resilient Gate Valves

Resilient gate valves are available in several designs based on installation and operational requirements.

Rising Stem Gate Valve

In this type, the valve stem moves upward when the valve opens. This design allows operators to visually confirm whether the valve is open or closed.

Rising stem valves are typically used in above-ground installations.

Non-Rising Stem Gate Valve

In non-rising stem valves, the stem does not move upward. Instead, the wedge moves internally.

This design is ideal for underground pipelines where space is limited.

Flanged Resilient Gate Valve

Flanged valves are designed with flange connections for secure installation in large pipeline systems.

They are widely used in industrial water distribution networks.

Applications of Resilient Gate Valves

Resilient gate valves are widely used in many industries due to their reliable sealing and durability.

Municipal Water Supply Systems

These valves regulate water flow in urban water distribution pipelines.

Wastewater Treatment Plants

They are used to control water movement during treatment processes.

Irrigation Systems

In agricultural irrigation networks, resilient gate valves help regulate water flow to different areas.

Industrial Utilities

Industries use these valves in cooling water systems, processing plants, and pipeline networks.

Fire Protection Systems

Resilient gate valves are commonly installed in fire hydrant pipelines to control emergency water supply.

Advantages of Resilient Gate Valves

Resilient gate valves offer several benefits that make them ideal for industrial pipeline systems.

Leak-Proof Sealing

The rubber-coated wedge ensures tight shut-off and prevents leakage.

Corrosion Resistance

Protective coatings and durable materials help resist corrosion and extend valve life.

Smooth Flow

The full bore design allows unrestricted fluid flow with minimal pressure drop.

Low Maintenance

The simple design requires very little maintenance compared to other valve types.

Long Service Life

High-quality construction ensures reliable performance for many years.

Common Mistakes When Selecting a Gate Valve

Selecting the wrong valve can lead to serious pipeline issues.

Common mistakes include:

• Choosing the wrong valve size

• Ignoring pressure rating requirements

• Selecting incompatible materials

• Overlooking temperature limits

• Buying from unreliable manufacturers

Proper evaluation and planning can prevent these problems.

Future Trends in Resilient Gate Valve Technology

As industrial systems continue to evolve, valve technology is also improving.

Some modern developments include:

• Smart valve monitoring systems

• Automated valve operation

• Advanced corrosion-resistant coatings

• Improved sealing materials

These innovations help industries achieve better efficiency, reliability, and water management.

sluice gate manufacturer

Conclusion

Resilient gate valves are essential components in modern industrial pipeline systems. Their rubber-coated wedge design provides reliable sealing, smooth operation, and long service life. These valves are widely used in water supply systems, irrigation networks, wastewater treatment plants, and industrial utilities.

Choosing the best resilient gate valve requires careful consideration of factors such as pipeline size, pressure rating, material compatibility, operating conditions, and valve type.

By selecting high-quality valves from trusted manufacturers, industries can ensure efficient flow control, prevent leakage, and maintain long-term reliability in their pipeline systems.

FAQ

What is a resilient gate valve?

A resilient gate valve is a shut-off valve that uses a rubber-coated wedge to provide leak-proof sealing and reliable flow control in pipeline systems.

Where are resilient gate valves used?

They are commonly used in municipal water supply systems, irrigation networks, wastewater treatment plants, and industrial pipeline systems.

What materials are used in resilient gate valves?

These valves are typically made from cast iron, ductile iron, or stainless steel with epoxy coatings for corrosion protection.

What is the main advantage of a resilient gate valve?

The main advantage is its tight sealing, corrosion resistance, smooth flow operation, and long service life.

How do resilient gate valves work?

They operate by raising or lowering a rubber-coated wedge inside the valve body to open or close the flow of fluid in a pipeline.
